Reports tab

View reports that have occurred or are scheduled to occur for an individual panel on the REPORTS tab. The tab displays this information on a calendar.

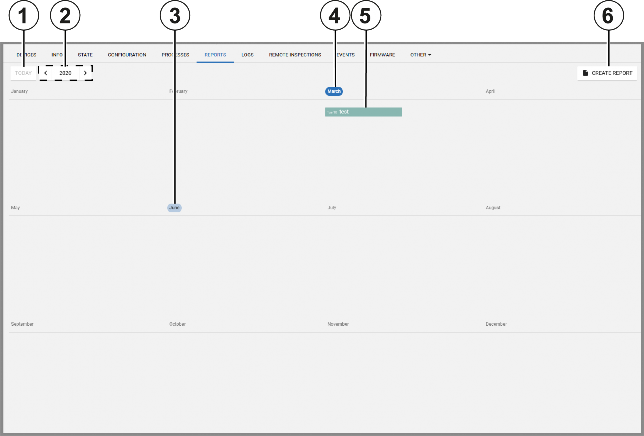

Figure 32. Navigating the Reports tab




Callout

Name

Description

1

Today

Click TODAY to return to the current month.

2

Month and year selector

The calendar displays one month or one year at a time. To change the month or year, click the arrows to the left of the month name. To change from the month view to the year view, click the button between the arrow selectors.

3

Select month

Click a month to open the calendar month in the viewer.

4

Current date or

month

A blue circle indicates the current day or month.

5

Report

All reports appear in the calendar and each report is a different color.

Select a report to display the file download options. Click CSV or PDF to download the report in the chosen format. PDF is a more readable file type than CSV.

6

CREATE REPORT

Click to create a new report. For more information, see Creating new reports.


Related topics Reports page

Creating a new report on the Panels page

Creating a new report on the Reports page Devices tab

Equipment hub
