Navigating the Info tab

View and edit general information about the panel and the customer on the INFO tab.

Leave comments about the panel on the INFO tab. If a panel fault is reassigned to a different user, the comment appears on the

INFO tab. Users can reply to these comments.

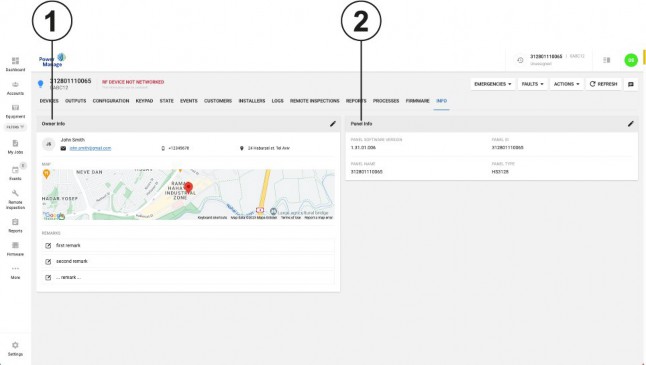

Figure 34. Navigating the INFO tab

Callout

Name

Description

OWNER INFO

The OWNER INFO section displays panel information such as name, contact information. To add MAP provide the Google map key in Settings -> RESOLVE ->

Google Settings

To change the owner information, click the pencil icon to open the dialog box.

2	PANEL INFO	The PANEL INFO section displays basic panel information such as the panel name, ID, type, and software version.
		To change this information, click EDIT to open the EDIT PANEL INFO dialog box.
