In previous versions, reports were made by using the Reports menu or Equipment ➔<select specific panel>➔REPORTS (tab) and then select ‘CREATE REPORT’ button.
In the latest version an additional report type is added Extended CSV. This new csv format has additional fields:
• Existing faults e.g |Water Leakage, Zone 1, 2022-09-30 01:10:57; Working 1-way, Zone 2, 2022-09-30 01:10:57 |
• Last 20 events e.g. ...|Remote Inspection, Control Panel, 2022 09-30 01:10:57; Panel has gone offline, IPMP, 2022-09-30 01:10:57 |
• Last 20 Processes e.g. ...|Download standard log, Succeeded, 2022-09-30 01:10:57; Download configuration, The PowerMax is armed., 2022-09-30 01:10:57 |
• RRI active faults e.g. ...|RRI1, 2022-09-30 01:10:57, Water Leakage, Zone 1, 2022 09-30 01:10:57; RRI1, 2022-09-30
01:10:57, Working 1-way, Zone 2, 2022-09-30 01:10:5; RRI2, 2022-09-30 01:10:57, Working 1-way, Zone 2, 2022-09-30
01:10:57 |
• RRI Bypassed Zones e.g. ...|RRI2, 2022-09-30 01:10:57, Zone 1; RRI2, 2022-09-30 01:10:57, Zone 2; |
Each field within event/process/fault is comma separated. Each event/process/fault is semicolon separated.

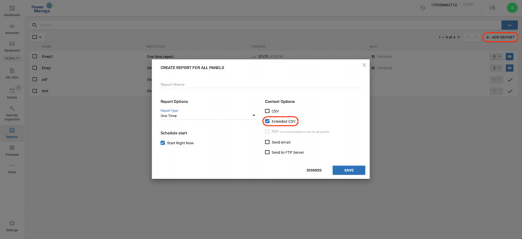

Figure 80. Extended CSV report
