Reading the diagnostics of a panel
Read the diagnostics of a panel to view the panel power data.
1. To open a panel in the Equipment hub, on the Panels page, in the PANEL column, click the panel name.
2. From the ACTIONS list, click Read Diagnostic. A Read diagnostic info process starts in the MY PROCESSES pane. For more information about the MY PROCESSES pane, see Navigating the MY PROCESSES pane.
3. When the process ends successfully, on the DEVICES tab, click the panel.
4. In the examination pane, to open the DIAGNOSTIC tab, click DIAGNOSTIC.
To ensure the data is up to date, repeat this procedure to refresh the diagnostic reading.

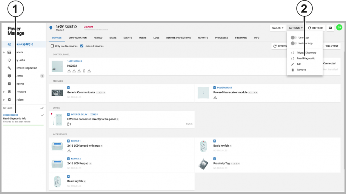

Figure 92. Starting a Read diagnostic process
Table 2. Starting a Read diagnostic process
Callout | Name | Description |
1 | Read diagnostic info pro- cess | When you click Read Diagnostic, a Read diagnostic info process starts in the MY PROCESSES pane. |
2 | Read Diagnostic | Click to start a Read diagnostic info process. |
Figure 93. Panel diagnostic results
Table 3. Panel diagnostic results
Callout | Name | Description |
1 | Read diagnostic info pro- cess | When you click Read Diagnostic, a Read diagnostic info process starts in the MY PROCESSES pane. |
2 | Selected panel | Click a panel to open it in the examination pane. |
3 | DIANOSTIC tab | Click DIAGNOSTIC to view the panel's diagnostic information on the DIAGNOSTIC tab. |
