Viewing GSM signal statistics
1. To open a panel in the Equipment hub, on the Panels page, in the PANEL column, click the name of the panel that you want.
2. On the DEVICES tab, click the GSM Modem.
3. To view the GSM statistics, in the examination pane, click GSM RSSI.
4. Optional: To open the GSM RSSI statistics dialog box, click SHOW. In the dialog box, you can view GSM RSSI statistical graphs representing interactive time periods.

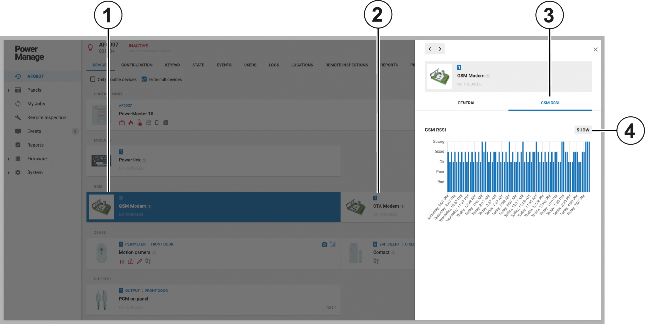

Figure 96. Viewing GSM signal statistics
Table 6. Viewing GSM signal statistics
Callout | Name | Description |
1 | GSM modem | A cellular communication modem |
2 | OTA modem | An 'Over the Air' software package in the 4G/LTE cellular modem. The OTA modem exists only in PowerMaster panels. |
3 | GSM RSSI tab | Click GSM RSSI to view the connection strength of the cellular modem over time. |
4 | SHOW | Click to view a larger graph that is interactive. |
