Using the Video on demand tab

Note: The following panel setups have video on demand capabilities:

• All PowerMaster panels

• PSP panels with software 1.0, 1.1, and 1.2 that have a FIBRO connection

• PSP panels with software version 1.3 and later that have an ITv2 connection

To view device video on demand in the VIDEO ON DEMAND tab, on the DEVICES tab, select a device with the camera icon. For more information, see camera in Navigating the Devices tab.

• For more information on changing the video on demand settings for all devices with video, see CONFIGURATION

tab.

• For more information on changing the video on demand settings for an individual device with video, see the

CONFIGURATION tab of the device on the DEVICES tab.

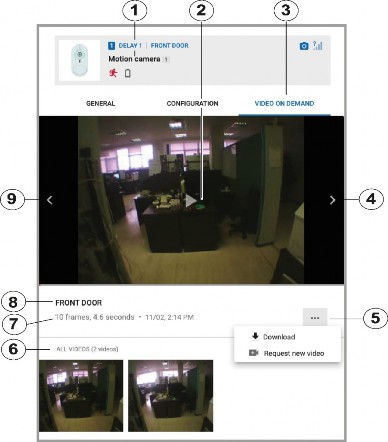

Figure 17. Navigating the VIDEO ON DEMAND tab

Callout	Name	Description
1	Device type	Displays the name of the device, remaining battery life, and ****
2	Play button	Click to play the video and enlarge the screen.
3	VIDEO ON DEMAND	Click to open the VIDEO ON DEMAND tab.
4	Forward skip arrow	Click to skip forward one frame,
5	Actions Menu	Click to display DOWNLOAD and REQUEST NEW VIDEO tabs.
		DOWNLOAD: Click to download the video locally.
		REQUEST NEW VIDEO: Click to record new video footage.
6	All Videos	Video on Demand clips can be viewed here.
7	Frames and time	Displays the number of frames and the total duration of the video.
8	Location and time	Displays the time the event occurs and the location of the device.
9	Back skip arrow	Click to skip backwards one frame.
