Backups tab
Navigating the Backups tab
tip
The Backups tab is available for the IQ panels only.
The PowerManage server checks the panel’s setup daily. If something changed, then a backup of the previous setup is stored on the server.
To restore previous IQ panel setup, use the BACKUPS tab.

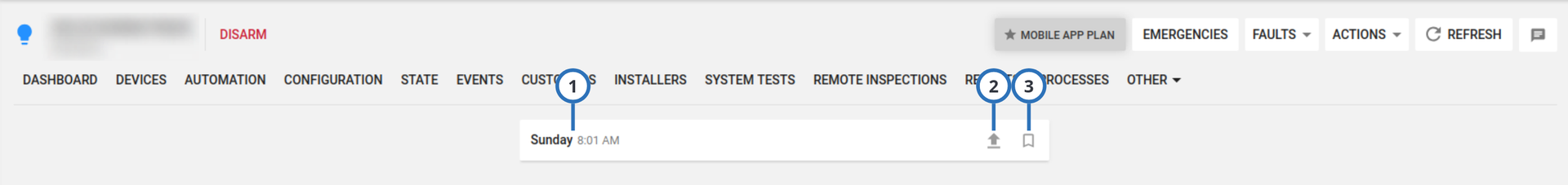

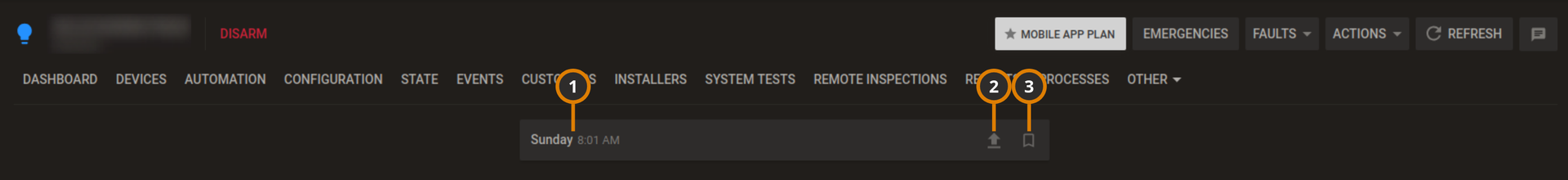

Figure. Navigating the BACKUPS tab
| Callout | Name | Description |
|---|---|---|
| 1 | Backup | Displays the backups history. You can set up the number of history backups: for more information, see Group parameters. |
| 2 | Apply | Restores the panel setup to that stored in the selected backup. |
| 3 | Exclude from rotation | Avoids PowerManage to overwrite the backup when a new backup occurs. |
Avoids PowerManage to overwrite the backup when a new backup occurs.
- In the Equipment hub, select the panel that you want to restore a previous setup on.
- Click the Backups tab.
- Select the backup from the backup list.
- Click Apply.
