Firmware tab
Navigating the Firmware tab
tip
For upgrading the IQ panels firmware, see IQ panel firmware patch tag list.
Upgrade an individual panel's software and its connected devices on the FIRMWARE tab.
For Visonic panels, you can only upgrade panels and the power link. For Neo panels, you can upgrade the panel, the
communicator, and any wired devices and modules. For more information about upgrading panels, devices, and modules,
see Firmware page.

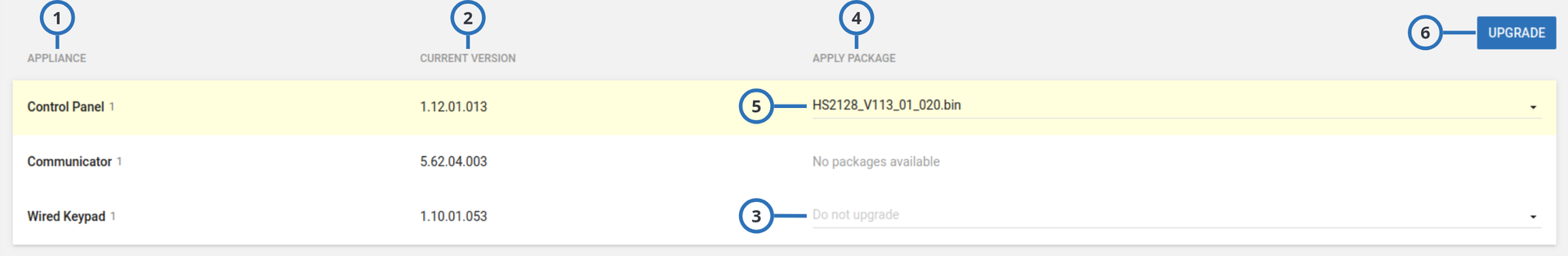

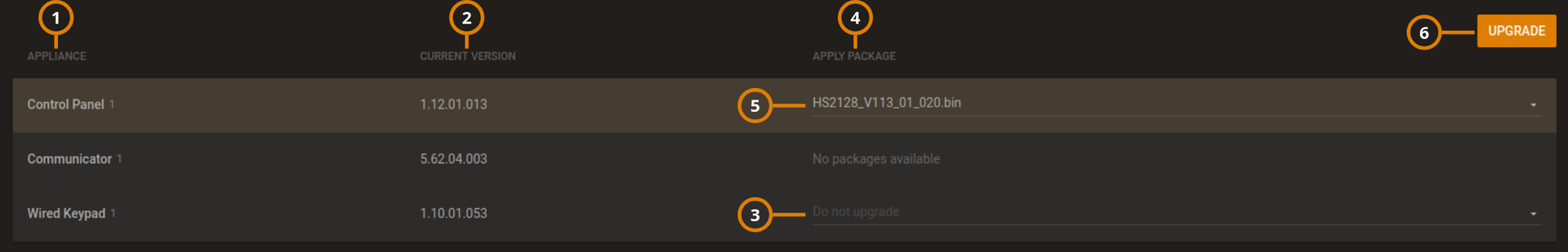

Figure. Navigating the FIRMWARE tab
| Callout | Name | Description |
|---|---|---|
| 1 | APPLIANCE | Displays the appliance. |
| 2 | CURRENT VERSION | Displays the current software version of the appliance. |
| 3 | Do not upgrade | By default, no package is selected from the APPLY PACKAGE list. |
| 4 | APPLY PACKAGE | Find packages that are available for upgrade in the APPLY PACKAGE column. note T.3 tech support loads upgrade packages to the repository server. |
| 5 | APPLY PACKAGE drop-down | Select an upgrade package from the APPLY PACKAGE list. |
| 6 | UPGRADE | Click upgrade to upgrade an appliance to the selected package. For more information, see Upgrading the firmware related to an individual panel in the Equipment hub. |
Upgrading the firmware of an individual panel in the Equipment hub
- Click the panel name in the PANEL column on the Equipment page to open a panel in the Equipment hub.
- Select the device to upgrade on the FIRMWARE tab.
- Select an upgrade package from the APPLY PACKAGE list.
- Click UPGRADE.
