Using the search filter
Filter the search by one of the following methods:
-
Type a search term in the Search bar and click SEARCH.
-
Select one or more key-value pairs in the Search list.
-
Begin to type key-value pairs and click the desired option in the auto-complete list.

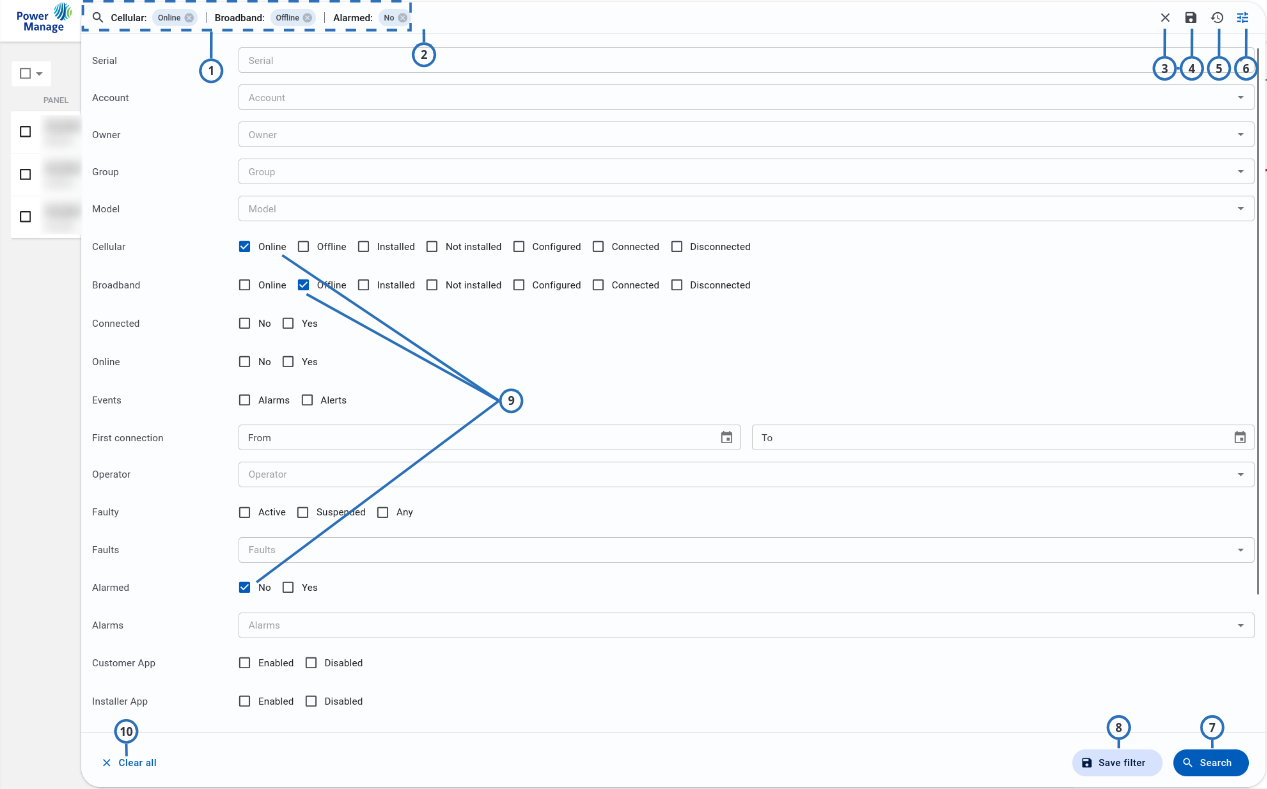

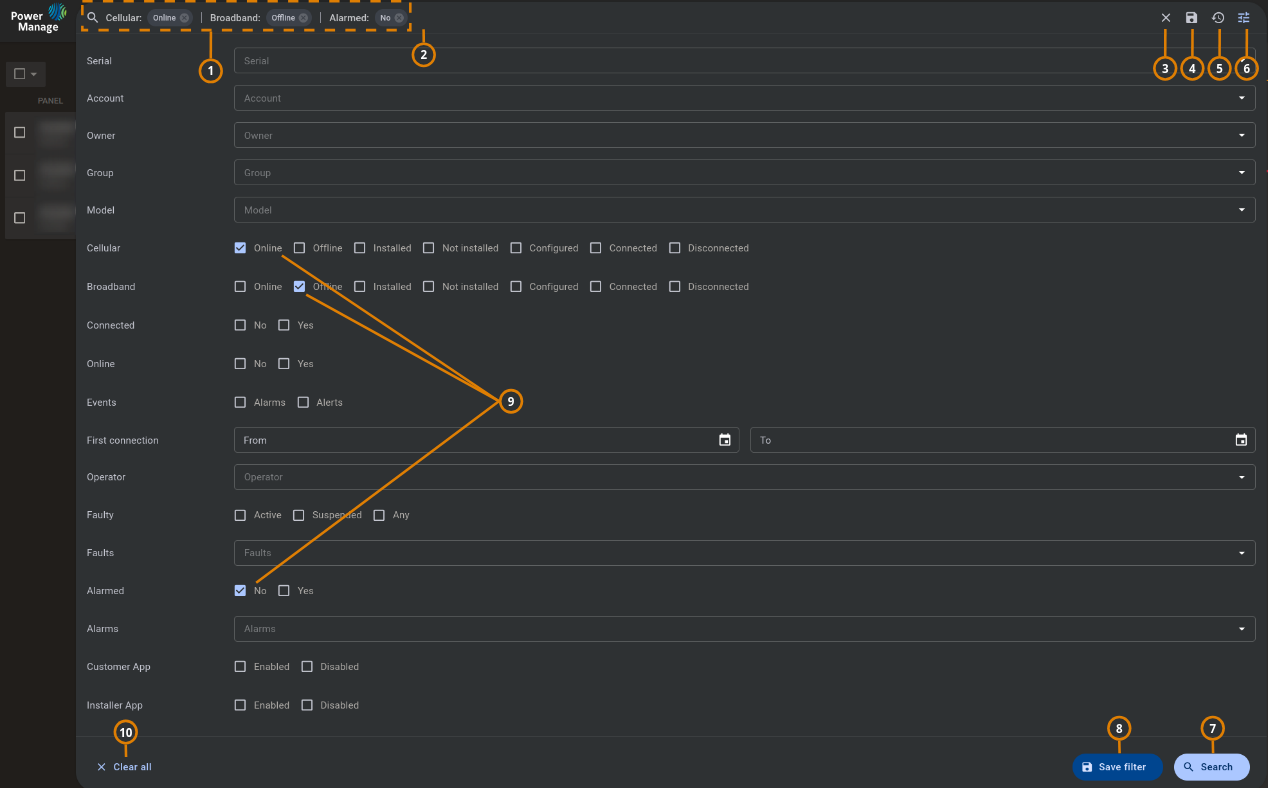

Figure. Navigating the search filter selection
| Callout | Name | Description |
|---|---|---|
| 1 | Selected filters | |
| When you select a Search list key-value pair, the key-value pair saves in the Search bar as a filter. Filter the search to return a match of one or more key-value pairs that you set in the Search list. | ||
| Click [X] next to the filter in the Search bar to remove it from the search. | ||
| 2 | Search bar | |
| Enter a term or key-value pair in the Search bar to search the selected page. | ||
| Click the Search bar or start to enter a key or value in the Search bar and a list of options appears. Select a key and pair from the auto-complete list and the key-value pair saves in the Search bar. | ||
| 3 | Cancel search | Click to cancel a search. |
| 4 | Show saved filters | |
| Click to show your saved filters. | ||
| Faulty Panels and Suspended Faults are examples of preset saved searches that appear under the Panels item in the navigation pane. To delete a saved search on the navigation pane, click the X next to it. | ||
| 5 | Last visited panels | Click to see a last visited panels |
| 6 | Search list button | |
| Click to filter the search with one or more key-value pairs. | ||
| Click the search bar to select a key and a related value, one at a time. | ||
| 7 | SEARCH | Click to search the selected page with a filter or search. |
| 8 | Save current filter | Click to save your current filter as a preset search. The saved search appears in the navigation pane in a drop-down list under the related page name. You can save a search as a sub-menu in Equipment, Events, Remote Inspection, and Reports items. |
| 9 | Selected values | |
| Click a search value to add it to the selected filters in the search bar. You can only select one value per key. The key-value pairs change depending on the page that is selected. | ||
| Use the scroll bar to scroll horizontally through the search keys and values. | ||
| 10 | Clear all button | Click to clear your current filter without closing the search blind |
note
- If you have multiple servers, you can perform a search across all of them. To enable this feature, contact technical support for assistance. They can guide you through how to add your servers under MMI Settings > Applications > Cross Server Search > Add Neighbour. If you have enabled MFA, you need to ensure that the other servers are logged in on the same browser.
- Some pages do not display the search filter icon.
