DSC one-way wireless devices

For the Neo panels V1.50 and above, the PowerManage 4.18 update adds support of the following DSC 1-way wireless devices.

Enrollment IDDescription
2xxxxDSC One-Way Door/Window
3xxxxDSC One-Way Motion
4xxxxDSC One-Way Smoke Detector
5xxxxDSC One-Way Medical Pendant
6xxxxDSC One-Way Keyfob 6
8xxxxDSC One-Way CO Detector
9xxxxDSC One-Way Keyfob 9
tip

To add the DSC one-way wireless devices, you must install and set up the DSC One-Way Wireless Radio module.

To add a DSC 1-way wireless device to a Neo panel, complete the following steps.

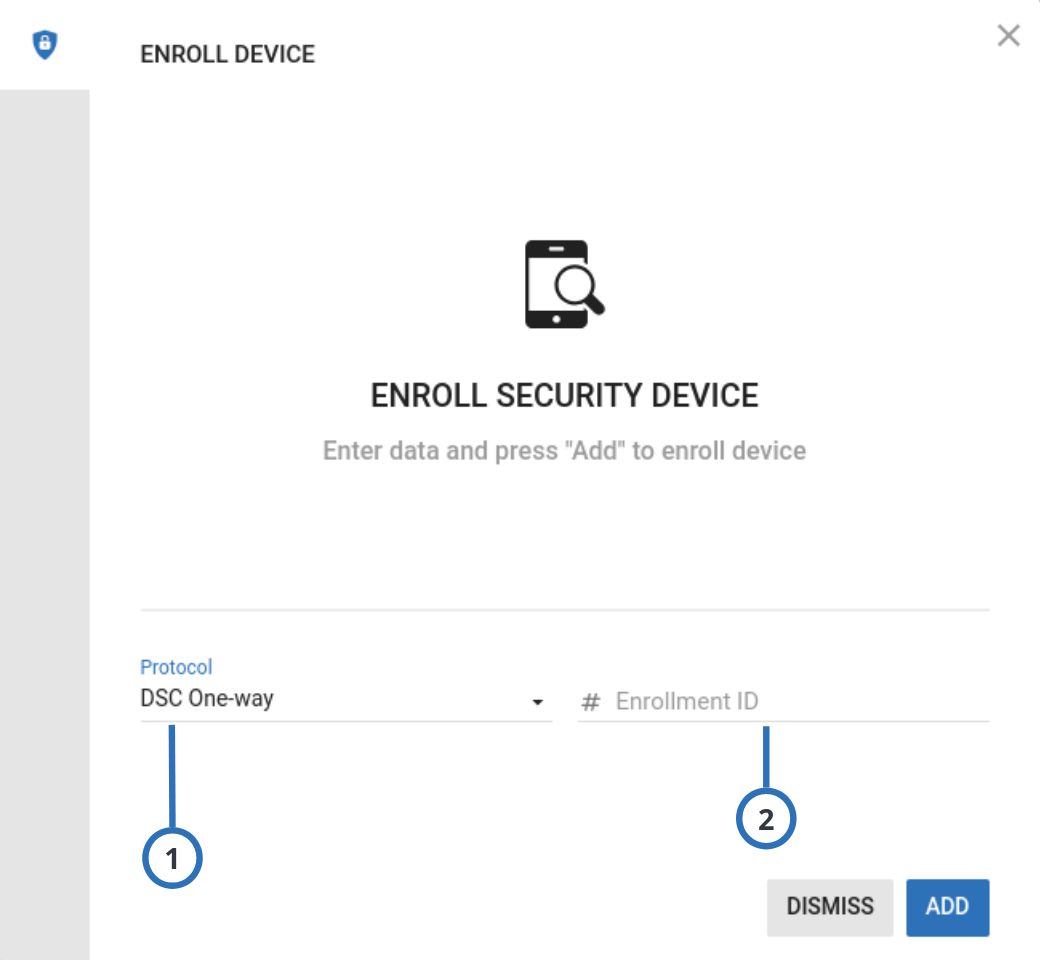

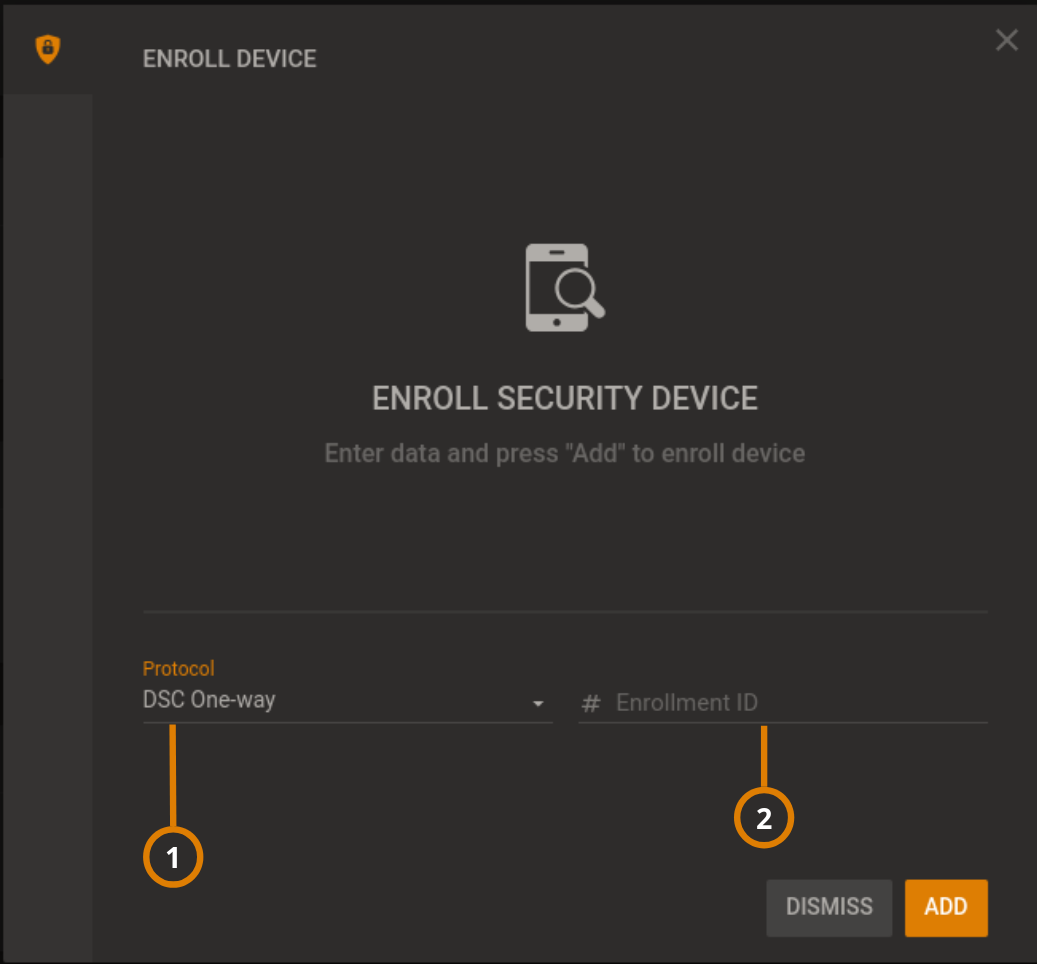

  1. On the navigation pane, click Equipment > the Neo panel > DEVICES > ADD DEVICE:
Add a DSC 1-way wireless device (light) Add a DSC 1-way wireless device (dark)
CalloutNameDescription
1ProtocolSelect DSC One-way.
2Enrollment IDEnter the enrollment ID on the device label.
  1. Set up the others device options, and then click ADD.
