Configuration

Overview

The Configuration page provides access to panel-level settings, system information, maintenance tools, and installation options for the IQ Panel.

Use this page to:

• Configure panel behavior and system settings.
• Manage users and installer options.
• Review hardware, software, and communication information.
• Configure date, time, sound, and network settings.
• Perform maintenance actions such as rebooting the panel or updating software.
• Access installation and diagnostic tools.

The page acts as the central administration area for panel configuration and maintenance.

Before you begin

Preconditions

• The IQ Panel is powered on and operational.

Important limitations

warning

• Rebooting or powering down the panel temporarily interrupts panel access.
• Available options may differ depending on panel model, firmware version, and installed hardware modules.

Page layout

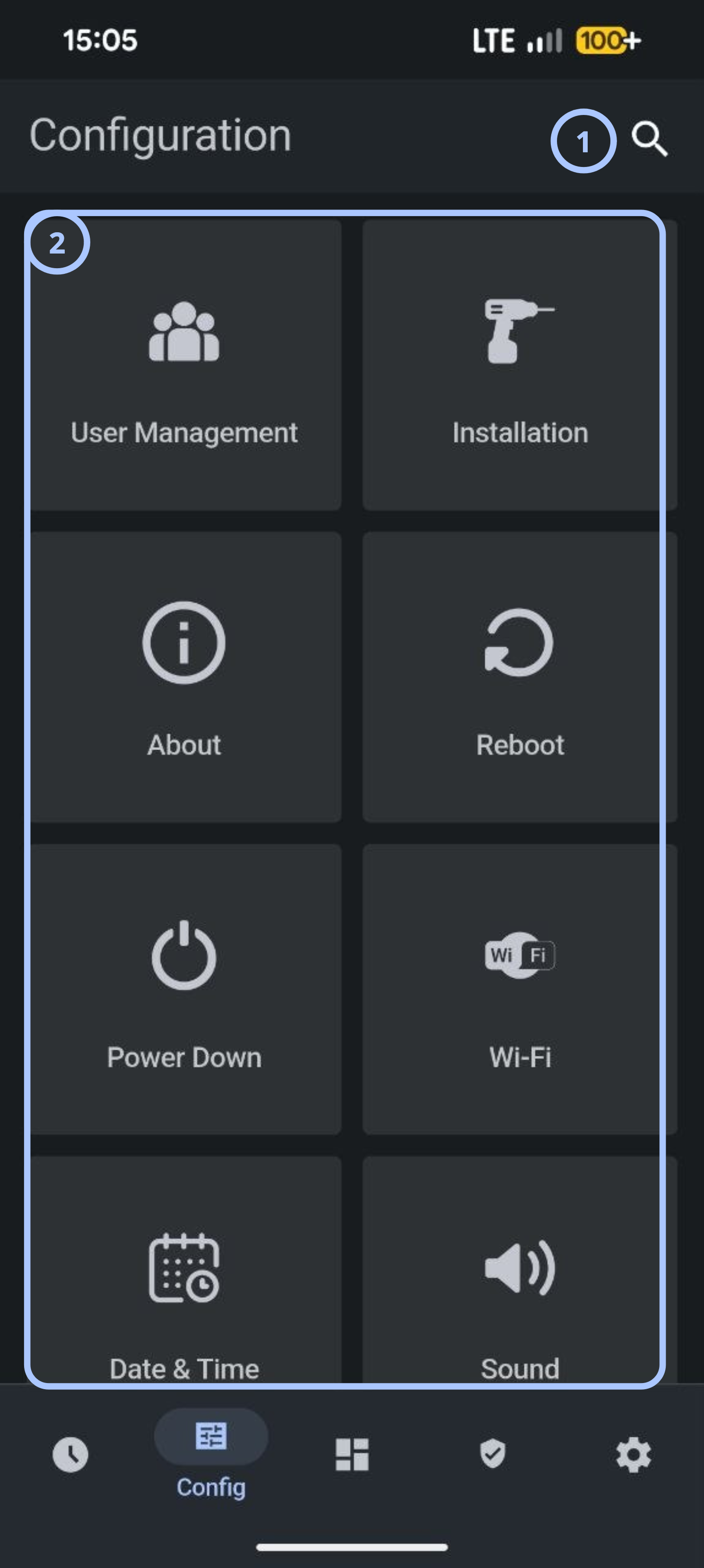

Configuration dashboard

Callout	UI element	Description	When to use
1	Search	Searches available configuration pages and settings.	Use to quickly locate a specific configuration option.
2	Configuration tiles	Provides access to configuration categories and maintenance functions.	Use to navigate to a specific configuration area.

Configuration tiles

The Configuration page contains the following primary tiles.

Tile	Description	When to use
User Management	Manages panel users and access settings.	Use when adding, updating, or removing users.
Installation	Opens installer and advanced system settings.	Use during panel setup and maintenance.
About	Displays panel information and component details.	Use when reviewing firmware, hardware, or communication information.
Reboot	Restarts the panel.	Use after maintenance or troubleshooting activities.
Power Down	Safely shuts down the panel.	Use before servicing hardware or disconnecting power.
Wi-Fi	Configures wireless network connectivity.	Use when connecting or troubleshooting wireless communication.
Date & Time	Configures date, time, and time format.	Use to ensure accurate event timestamps.
Sound	Configures panel audio settings.	Use to adjust announcements, beeps, chimes, and volume.
Upgrade Software	Starts software update procedures.	Use when updating panel firmware.
Partitions	Configures partition settings.	Use when managing multiple security partitions.

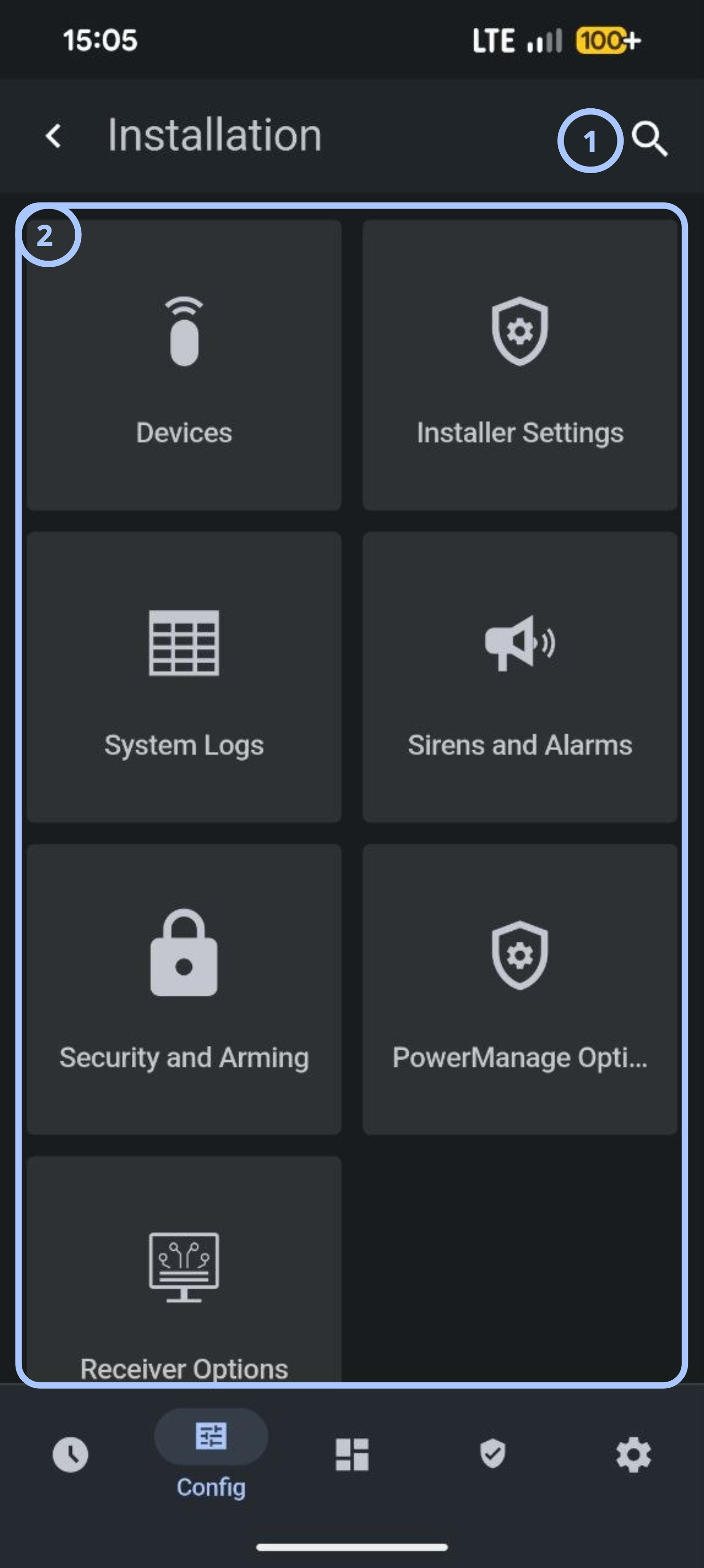

Installation page

Callout	UI element	Description	When to use
1	Installation options	Provides access to installer-level configuration and diagnostics.	Use during setup, maintenance, and troubleshooting.

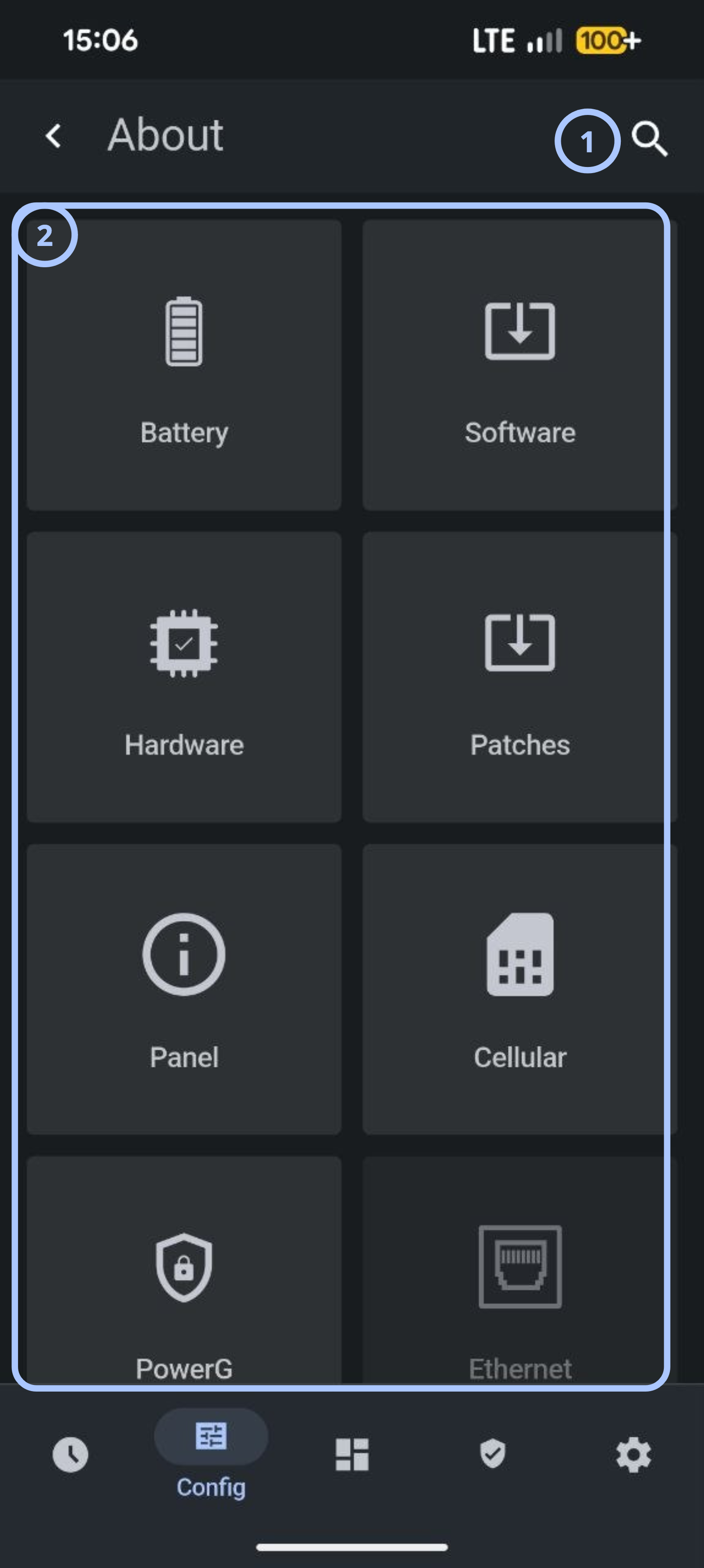

About tiles

The About page contains the following primary tiles.

Tile	Description	When to use
Battery	Shows battery settings.	Use to check battery.
Software	Displays panel software information.	Use for reviewing software information.
Hardware	Displays panel hardware information.	Use for reviewing hardware information.
Reboot	Restarts the panel.	Use after maintenance or troubleshooting activities.
Patches	Shows panel available patches.	Use for patching panel.
Panel	Shows panel info.	Use for checking panel info.
Cellular	Shows panel cellular info.	Use to check panel cellular info.
PowerG	Shows panel PowerG info.	Use to check panel PowerG info.
Ethernet	Shows panel Ethernet info.	Use to check panel Ethernet info.

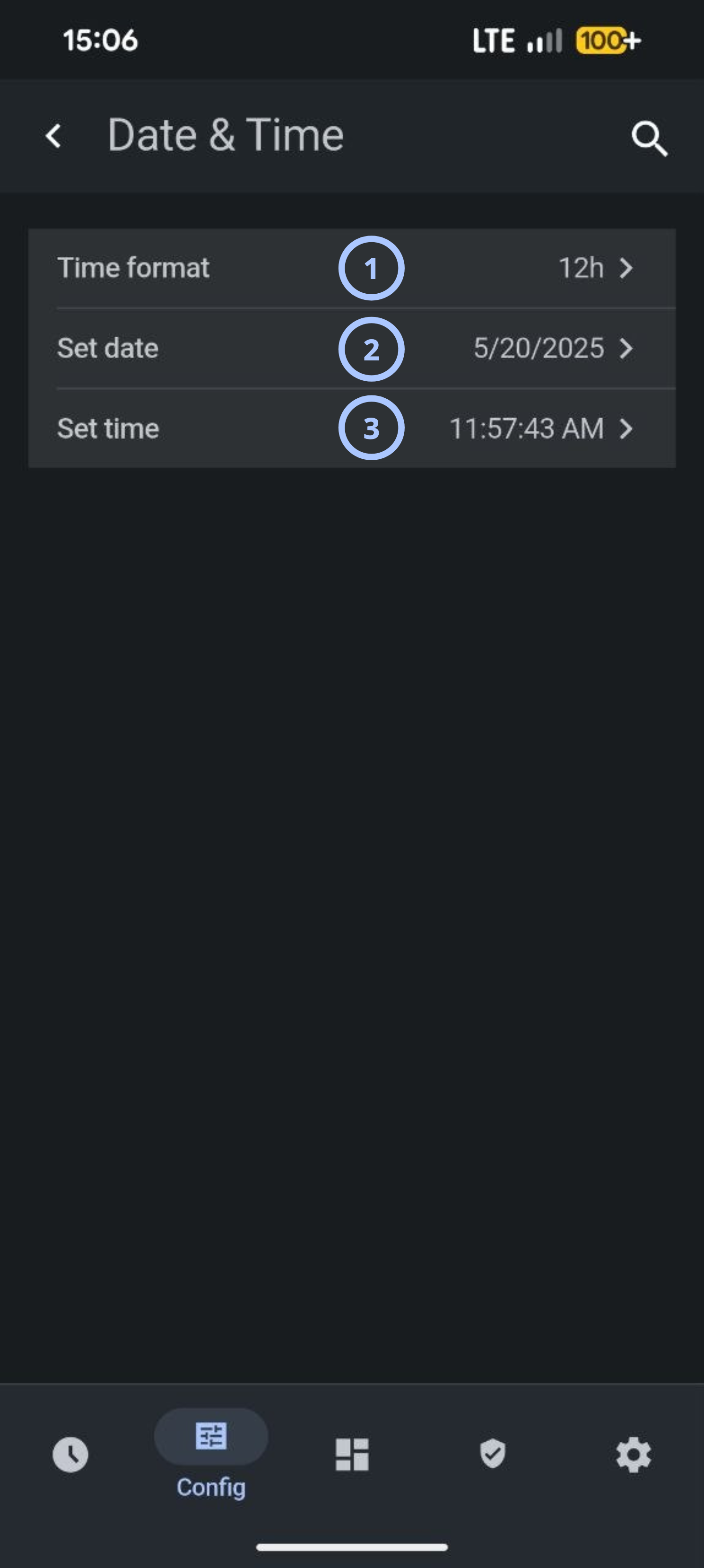

Date & Time

Callout	UI element	Description	When to use
1	Time format	Displays and sets the clock format used across the panel.	Use to switch between a 12-hour and 24-hour clock display.
2	Set date	Displays and sets the current panel date.	Use to correct or update the panel date.
3	Set time	Displays and sets the current panel time.	Use to correct or update the panel time.

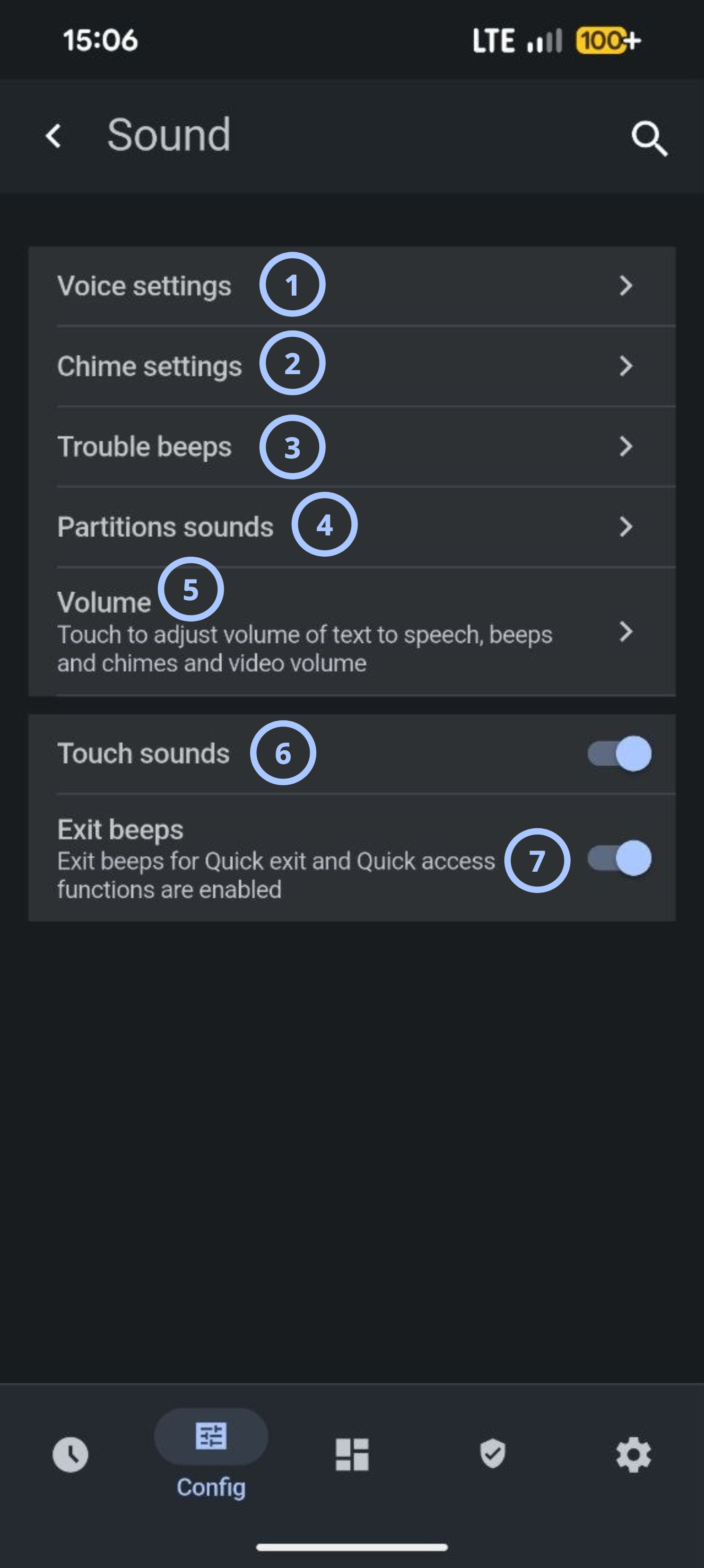

Sound

Callout	UI element	Description	When to use
1	Voice settings	Opens options for panel voice announcements.	Use to configure spoken alerts and announcements.
2	Chime settings	Opens options for door and zone chime tones.	Use to configure chime behavior for entry and exit sensors.
3	Trouble beeps	Opens options for trouble condition audio alerts.	Use to configure audible alerts for system trouble conditions.
4	Partitions sounds	Opens sound configuration specific to individual partitions.	Use in multi-partition systems to configure sounds per partition.
5	Volume	Adjusts the volume of text-to-speech, beeps, chimes, and video.	Use to raise or lower the overall panel audio level.
6	Touch sounds toggle	Turns audible feedback for screen touches on or off.	Use to enable or disable touch feedback sounds.
7	Exit beeps toggle	Turns exit beeps for Quick exit and Quick access functions on or off.	Use to enable or disable audible feedback during exit sequences.

How to use this page

Review panel information

Goal:

• View hardware, software, and communication details.

Steps:

1. Open Configuration.
2. Select About.
3. Select the information category to review.
4. Review the displayed details.

Expected result:

• System information is displayed.
• Firmware and hardware details are available for verification.

Configure date and time

Goal:

• Update the panel date and time settings.

Steps:

1. Open Configuration.
2. Select Date & Time.
3. Select Time format and choose the required format.
4. Select Set date and enter the correct date.
5. Select Set time and enter the correct time.
6. Save the changes if prompted.

Expected result:

• The panel displays the updated date and time.
• Future events use the updated timestamp.

note

Incorrect date and time settings can affect event logs and troubleshooting activities.

Configure sound settings

Goal:

• Modify panel audio behavior.

Steps:

1. Open Configuration.
2. Select Sound.
3. Select the setting you want to modify.
4. Adjust the required option.
5. Save changes if prompted.

Expected result:

• Audio configuration is updated.
• New sound settings apply to future events.

Reboot the panel

Goal:

• Restart the panel safely.

Steps:

1. Open Configuration.
2. Select Reboot.
3. Confirm the action if prompted.
4. Wait for the panel to restart.

Expected result:

• The panel restarts.
• Configuration changes that require a restart become active.

warning

Panel services may be temporarily unavailable during the restart process.

Power down the panel

Goal:

• Shut down the panel safely.

Steps:

1. Open Configuration.
2. Select Power Down.
3. Confirm the shutdown request.
4. Wait until the panel fully powers down.

Expected result:

• The panel shuts down safely.
• Hardware maintenance can be performed.

Configuration lwm2m only

Goal:

• Configure PowerManage connection.

Steps:

1. Log in to Direct mode
2. Tap config
3. Tap Installation
4. Tap PowerManage options
5. Set server Host Name: powermanage.com
6. Port Number 5685

Tips

tip

• Verify the date and time after firmware upgrades or prolonged power interruptions.
• Use system logs during troubleshooting to identify recent panel events.
• Confirm network configuration after changing Wi-Fi settings.

Troubleshooting

Date or time is incorrect

Possible causes

• Manual configuration error.
• Incorrect time format.
• System clock was not updated.

What to do

1. Open Date & Time settings.
2. Verify the selected format.
3. Update the correct date and time.
4. Save the changes.

Software update cannot start

Possible causes

• Network connectivity issues.

What to do

1. Check network connectivity.
2. Retry the update operation.
