Keypad tab

To connect to a physical keypad, complete the following steps:

1. Open a virtual keypad on the KEYPAD tab.
2. Click CONNECT NOW.

Important

Click DISCONNECT after you use the virtual keypad to disconnect from the physical keypad. If you do not disconnect, a communication backlog occurs and no other virtual keypad can connect.

note

You can use the virtual and physical keypads simultaneously with Visonic panels. If you activate a Neo or PSP virtual keypad, the physical keypad deactivates.

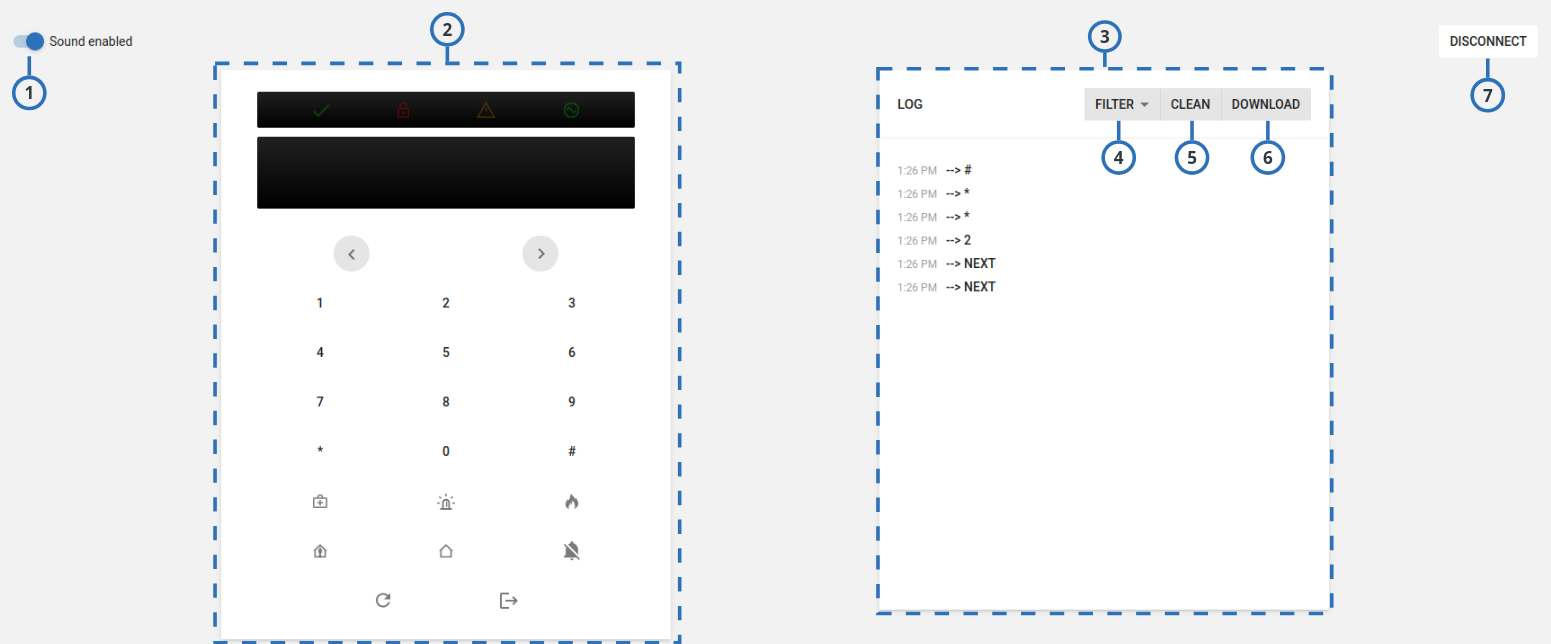

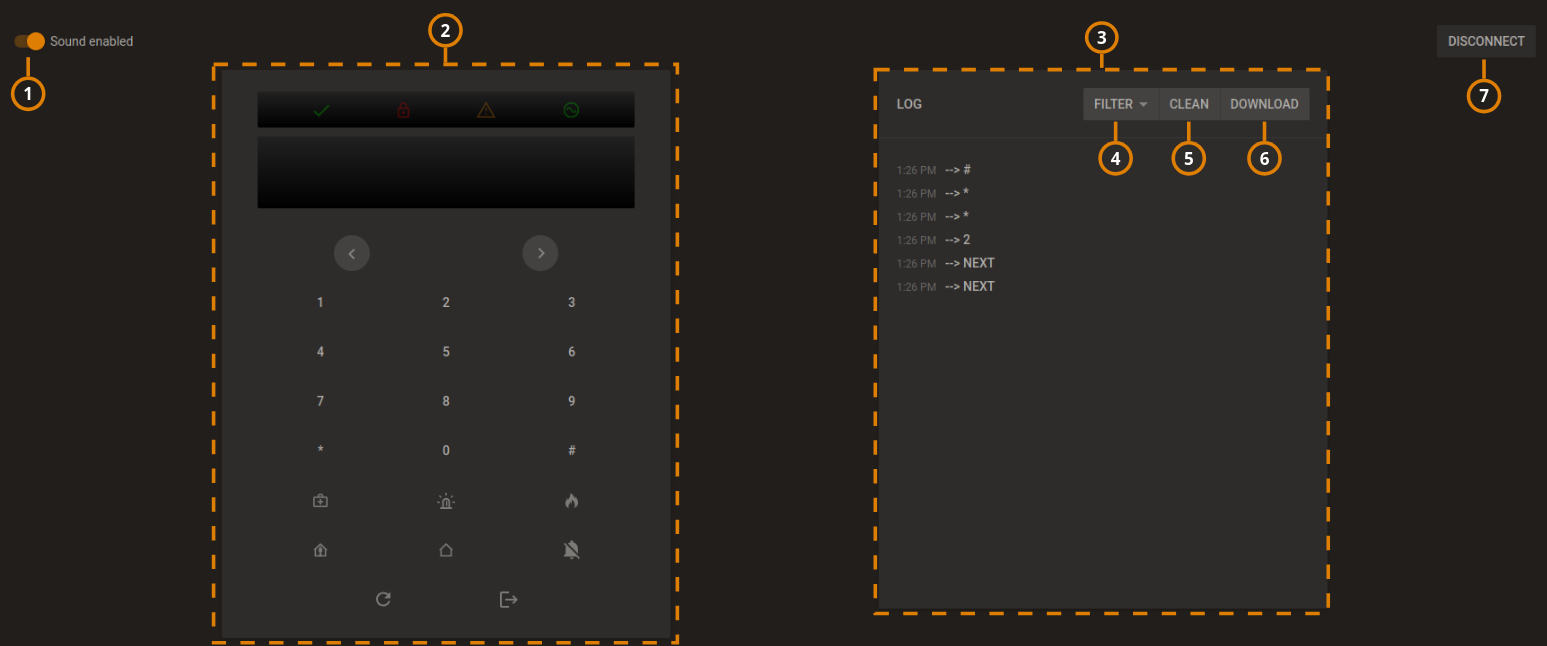

Figure. Navigating the KEYPAD tab

Callout	Name	Description
1	Sound toggle	Turn on Sound enabled to enable the sound of keypad notifications.
2	Virtual keypad	The virtual keypad mirrors the keypad buttons and the live LED and LCD display of the physical keypad. The LED display features the power status, trouble status, WAN, and WiFi connectivity icons.
3	Log	The log file records all messages between the keypad and the panel.
4	FILTER	To show only a specific category of message, from the FILTER list, select any of the following options: Key: Display messages related to key presses only Leds: Display messages related to LED status only Text: Display messages related to LED text only
5	CLEAN	Click to erase the log.
6	DOWNLOAD	Click to download the log locally.
7	DISCONNECT	Click when you finish using the virtual keypad. Some physical keypads cannot function when the virtual keypad is connected.
