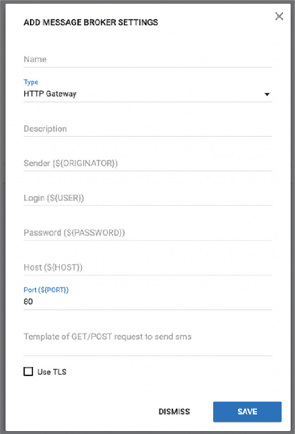

Name

Description

Name

The name that identifies the message broker on the MESSAGE BROKER tab.

Type

If the modem is connected to the server, from the Type drop-down, select Serial Port.

To use a third party message broker, connect via HTTPS Ethernet (TCP/IP). From the Type drop- down list, select HTTP Gateway.

Description

Describes the message broker on the MESSAGE BROKER tab.

Sender

(${ORIGINATOR})

Your message broker's phone number. To the user, this number displays as the SMS sender.

Login (${USER})

The user logon that the message broker provides.

Password (${PASSWORD})

The password that the message broker provides.

Host (${HOST})

The message broker's URL.

Port (${PORT})

The port to use to connect to the message broker.

Template of GET/POST request to send sms

The HTTP message that sends to the message broker. For more information about Template of GET/POST request to send sms, see Creating a GET or POST request template.

‌Use TLS

To enable TLS encryption, select the Use TLS check box.
