Main screen

The new main screen has almost identical functionality with different menu locations.

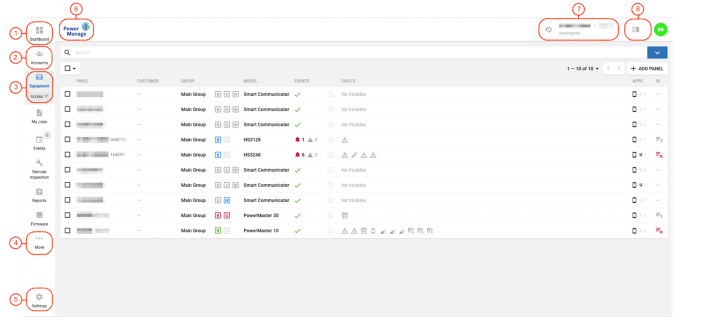

Figure 62. Main screen




Callout

Description

1

You can now access the dashboard from the main screen. In previous versions it was under System > Dashboard

2

Accounts now includes CUSTOMERS (previously called Interactive Users) and INSTALLERS

3

Equipment updated from Panels now includes sub-menu FILTERS which replaces the triangle icon which previously opened filters

4

… More replaces System. Select any menu under ...More and the selected menu will now appear above ...More in the main menu

5

Settings is now accessible directly from the main screen. Previously it was under System menu

6

PowerManage icon moved slightly to the right

7

Last visited panel and user moved from the top left side to the top right side of the screen

8

Added menu that includes two sub menus:

My Jobs (previously under System)

History which lists all the previously visited panels
