Panel connection channel status
To view the channel connection statuses of a panel, see ITv2 integration channels and FIBRO receiver channels in Panel connection channel status.
In the following figure, the Neo panel has four ITv2 integration connection channels. The first channel is connected to the server and the remaining three channels are not configured.
The Neo panel also has four FIBRO receiver connection channels. The first channel is connected to the server and is online. The remaining three channels are not configured.

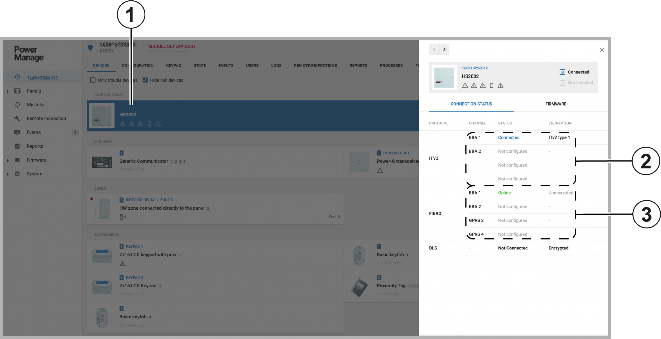

Figure 91. Panel communication channel status on the DEVICES tab
Callout | Name | Description |
1 | Selected panel | Click a panel to open the panel in the examination pane and view the connection channels on CONNECTION STATUS tab. |
2 | ITv2 chan- nels | There are four ITv2 integration connection channels. |
3 | FIBRO chan- nels | There are four FIBRO receiver connection channels. |
