Add a panel to the server on the Equipment page.
To add a panel, click ADD PANEL on the Equipment page. For more information, see ADD PANEL in Navigating the Panels page.

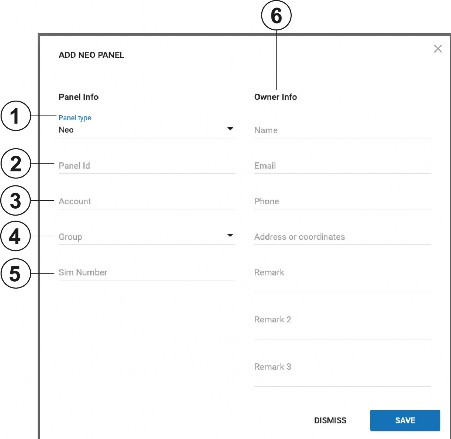

Figure 13. ADD PANEL dialog box
In the ADD PANEL dialog box, enter the panel information. See the following definition list for descriptions of the dialog box fields:
Callout | Name | Description |
1 | Panel type | From the Panel type list, select the panel type. |
2 | Panel ID | In the Panel ID field, enter the panel identification number. Note: For Neo panels, enter the integration identification number in panel installer menu: [851][422]. |
3 | Account | To connect the panel to an automation or central station, enter the ID number of the auto- mation or central station in the Account field. |
4 | Group | From the Group list, select the group that you want to associate the panel with. |
5 | SIM number | In the SIM number field, enter the number of the SIM card in the panel. The number is used to send a wake-up SMS to the panel. Note: The SIM number is equivalent to a phone number. |
6 | Owner Info | Enter the owner's information in the Name, Email, Phone, Address, and Remark fields. Note: Apart from the Email field, this information is stored and not used. |
