‌Keypad tab‌

To connect to a physical keypad, complete the following steps:

1. Open a virtual keypad on the KEYPAD tab.

2. Click CONNECT NOW.

Important: Click DISCONNECT after you use the virtual keypad to disconnect from the physical keypad. If you do not disconnect, a communication backlog occurs and no other virtual keypad can connect.

Note: You can use the virtual and physical keypads simultaneously with Visonic panels. If you activate a Neo or PSP virtual keypad, the physical keypad deactivates.

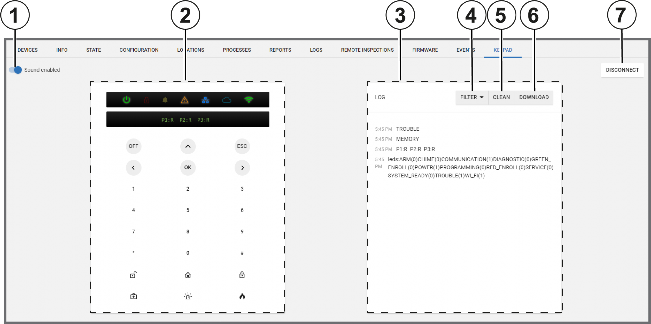

Figure 24. Navigating the KEYPAD tab




Callout

Name

Description

1

Sound toggle

Turn on Sound enabled to enable the sound of keypad notifications.

2

Virtual keypad

The virtual keypad mirrors the keypad buttons and the live LED and LCD display of the physical keypad. The LED display features the power status, trouble status, WAN, and WiFi connectivity icons.

3

Log

The log file records all messages between the keypad and the panel.

4

FILTER

To show only a specific category of message, from the FILTER list, select any of the following options:

• Key: Display messages related to key presses only

• Leds: Display messages related to LED status only

• Text: Display messages related to LED text only

5

CLEAN

Click to erase the log.

6

DOWNLOAD

Click to download the log locally.

7

DISCONNECT

Click when you finish using the virtual keypad. Some physical keypads cannot function when the vir- tual keypad is connected.


Related topics Devices tab Equipment hub
