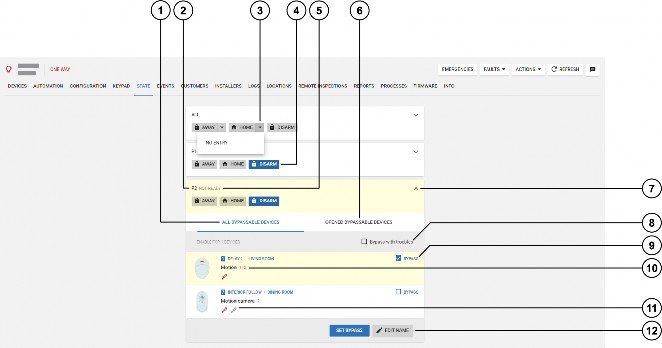

Callout

Name

Description

1

ALL BYPASSABLE DEVICES

Lists all devices that can be bypassed.

2

Partition

Displays the name of the partition. To change the arm or disarm state for a partition, click AWAY, NIGHT, STAY, or DISARM.

Note: The All row always appears first in the list. Use the All row to change the state of all partitions in the panel at once.

3

Arming options

The STAY/HOME and AWAY buttons have arming sub-options. To view the sub- options list, click the drop-down arrow.

You can select NO ENTRY and NO EXIT from the STAY list, and NO ENTRY from the AWAY list. For the system to alarm when someone enters the perimeter, select NO ENTRY. For the system to alarm when someone exits the perimeter,

select NO EXIT.

4

Arm state

The active state is blue.

5

States

READY

Indicates a ready or armed state.

NOT READY

Indicates a not ready state. You cannot arm the panel until the panel is in a ready state.

To return a panel to a ready state, ensure that all sensors are physically closed. Doors and windows are examples of zones that can physically close. If the issue is not physical, select the OPENED BYPASSABLE DEVICES tab check box to see all of the devices with troubles in the examination pane and select the

BYPASS check box to bypass devices with troubles.

6

OPENED BYPASSABLE DEVICES

Lists all devices that can be bypassed and are in open or alarmed status.

7

Selected partition

Click the down arrow to view the partition information.

Note: Partitions appear on the STATE tab if they are enabled in the panel.

8

Bypass with troubles

Select the check box to check all bypassable devices that have trouble.

9

BYPASS

Select to bypass a device. If a panel is in a not ready state, bypass any troubled devices to return it to a ready state:

• Tick the BYPASS box and press the SET BYPASS button.

The system bypasses the device until the next arm or disarm state change.

10

Associated partitions

A list of all of the partitions that associate with the device

11

Trouble icons

Displays the types of troubles that affect the device. Hover over an icon to see a description of the trouble.

12

EDIT NAME

Click to edit the partition name.
