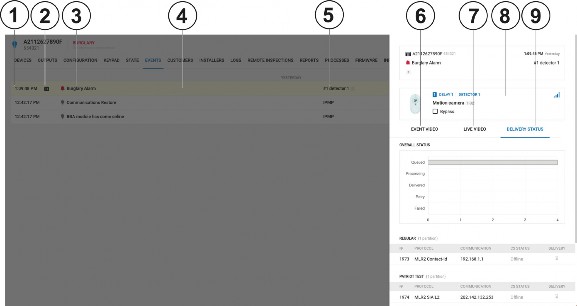

Callout

Name

Description

1

Event time

The time the event occurs.

2

Video content

The camera icon indicates that the event has video footage that you can view on the EVENT VIDEO tab.

3

Event description

A description of the alarm type. For more information, see Event severity in

Navigating the Events page.

4

Selected event

Select an event row to view information about the related device in the examination pane. There are three possible icons:

• Hover over the i icon with the cursor to display the SIA or CID event if CS is defined to this event.

• The event delivery status may be short or long format.

• When you click the it changes to the ✔ icon to signal that the

event is viewed and taken care of. Only mark an event as viewed if your investigation is complete.

5

Device number and partition

Displays the original source of the event.

6

EVENT VIDEO tab

The EVENT VIDEO tab appears if the selected device has a camera. Select the EVENT VIDEO tab to view the video footage related to the event. For more information about viewing event video footage, see Viewing event video footage in the events tab.

7

LIVE VIDEO tab

Click the LIVE VIDEO tab to view live video footage from the source device. The live video stream lasts five seconds.

You can enable or disable live video on demand capabilities during specific states only, such as an armed state. Define the video demand settings in the Video on demand field on the panel CONFIGURATION tab.

8

Device information

General information about the source of the event, such as a device.

9

DELIVERY STATUS

You can view the delivery status in real time. Statuses are:

• Queued

• Processing

• Delivered

• Retry

• Failed
