Upgrade an individual panel's software and its connected devices on the FIRMWARE tab.
For Visonic panels, you can only upgrade panels and the power link. For Neo panels, you can upgrade the panel, the communicator, and any wired devices and modules. For more information about upgrading panels, devices, and modules, see Firmware page.

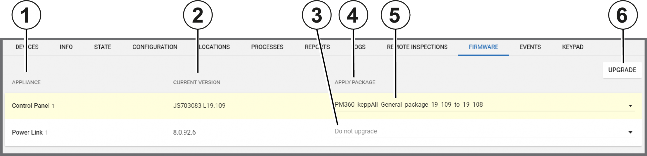

Figure 33. Navigating the FIRMWARE tab
Callout | Name | Description |
1 | APPLIANCE | Displays the appliance. |
2 | CURRENT VERSION | Displays the current software version of the appliance. |
3 | Do not upgrade | By default, no package is selected from the APPLY PACKAGE list. |
4 | APPLY PACKAGE | Find packages that are available for upgrade in the APPLY PACKAGE column. Note: T.3 tech support loads upgrade packages to the repository server. |
5 | APPLY PACKAGE drop-down | Select an upgrade package from the APPLY PACKAGE list. |
6 | UPGRADE | Click upgrade to upgrade an appliance to the selected package. For more information, see Upgrading the firmware related to an individual panel in the Panels hub. |
Upgrading the firmware related to an individual panel in the Panels hub
