The PowerManage 4.16 update adds the Patch tag for the IQ panels firmware upgrading.
To upgrade the firmware of an individual IQ panel, in the Equipment page, select the IQ panel, then click the Firmware tab:

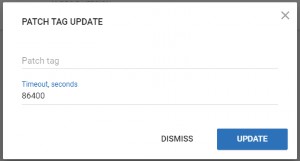

Click PATCH TAG:
Name | Description |
Patch tag | Enter the patch tag to upgrade the panel firmware. You can find the patch tag on the IQ panel keypad. For more information, refer to the IQ panel installation guide |
Timeout, seconds | If PowerManage cannot upgrade the firmware before this timeout expires, it logs a failed firmware upgrade event. |
UPDATE | Click UPDATE to start the firmware upgrading. |
To upgrade the firmware on more IQ panels at one time, in the Firmware page, click Patch tag:
Callout | Description |
1 | Click to upgrade all panels in the list. |
2 | Click to start upgrading of the selected panels. |
3 | Click to select or deselect the panel for upgrading. |
Related topics
Upgrading the firmware of an individual panel in the Equipment hub
