The PowerManage 4.16 update includes the Menu setting options to setup the navigation pane appearance.

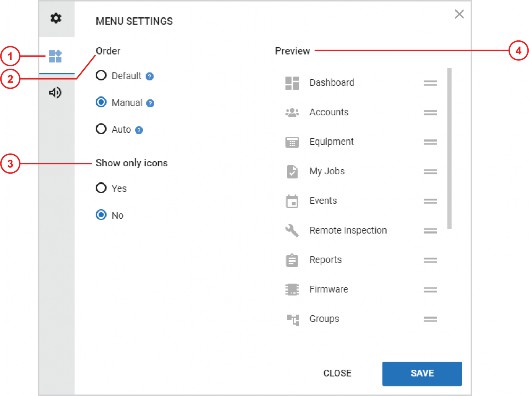

To display the Menu settings options, on the top right of the PowerManage window, click the user icon, then click Settings, then click the Menu settings icon:
Callout | Name | Description |
1 | Menu settings icon | Click to open the Menu settings options. |
2 | Order | Use the Order option to setup the display order of the navigation pane’s icons, as follows. Default: PowerManage displays the navigation pane’s icons with their default order: Dashboard, Accounts, Equipment, My Jobs, Events, Remote Inspection, Reports, and Firmware. Manual: PowerManage displays the navigation pane’s icons as you set in the Preview area. Auto: PowerManage displays the most used icons at the top of the navigation pane. |
Callout | Name | Description |
3 | Show only icons | Use the Show only icons option to hide the icons’ labels in the navigation pane, as follows. Yes: PowerManage hides the icons’ labels in the navigation pane. No: PowerManage shows the icons' labels in the navigation pane. |
4 | Preview | To move an icon in a different position, click and hold the icon and drag it to the new position. |
