Navigating the UI

‌Navigating the UI‌

Figure 2. Navigating the UI

Callout	Name	Description
1	Navigation pane	To view a page, click the page name in the navigation pane. • The required privileges are defined in the user's role. For more information about roles, see Roles page . • The PowerManage server has licensing logic that removes some of the server's functionality. If pages are missing and it is not due to undefined privileges, contact technical support.
2	Logo	Identifies the server that PowerManage is running on. Click to view the version, build number, local time and timezone of the server. Click show license info in the pop-up to display functionality supported by Power- Manage.
2	Logo	To change the PowerManage logo to a custom logo, contact technical sup- port.
3	Search bar	Search a page by using free typing or search filter options. For more information, see Using the search filter .
4	Last visited panel	Click to access the panel.
5	My Jobs	Click to access list of My Jobs or list of accessed panels under History.

User icon

Click the user icon to open a list with the following options:

• Settings: To define the following settings:

• Gear icon displays the following:

• Language for the server user

• Temperature standard units

• Theme: light or dark

• Automatic log out timeout

• Event delivery status view

• Four-squares icon displays the following:

• Order of the navigation pane’s icons

• Show only icons in the navigation pane

• Speaker icon displays the following:

• Alarm sounds

• Events supervision

• Event notifications

• Alarm supervision settings

• Turn on or off app notifications and notification sounds

• Edit Profile: To edit the phone number and country of the server user, from the user icon list, click Edit Profile.

• Change Password: To change the password of the server user, from the user icon list, click Change Password.

• Help: To view the PowerManage web help, from the user icon list, click Help.

• Privacy Policy: to view the privacy policy.

• Logout: To log out of the PowerManage web user interface, from the user icon list, click Logout.

•

The user icon displays the initial of the first name of the user that is logged on. The initials DS display for the default super admin user icon. For more information about users, see Users page .

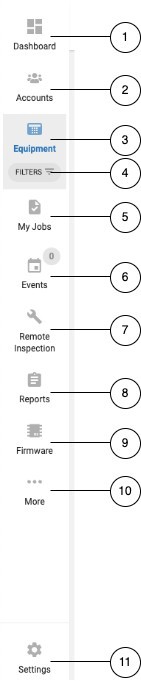

Figure 3. Navigation pane

Callout	Name	Description
1	Dashboard	View the overall statistical data from the server in a visual format on the Dashboard page.
2	Accounts	Lists the customers (end users) and installers accounts.
3	Equipment	Manage the panels that are enrolled on the server: For more information, see Equipment hub. To examine a panel in the equipment hub, on the Equipment page, click the panel name. For more information about the equipment hub, see Equipment hub .

4	FILTERS	Displays the saved searches that are related to the Equipment page. To delete a saved search, click the X next to it. Note: FILTERS menus exists only when there is at least one saved search. The Equipment, Events, and Remote Inspection items can have sub-menu FILTERS.
5	My Jobs	Lists all tasks initiated by the operator.
6	Events	Displays all of the events that are received from all enrolled panels. For more information, see Events page .
7	Remote Inspection	Open the Remote inspection page to view, run, and schedule health tests for the panels that are enrolled in the server.
7	Remote Inspection	To run or view a remote inspection for an individual panel, open the panel in the Equipment hub and go to the REMOTE INSPECTIONS tab. For more information, see Navigating the Remote inspections tab
8	Reports	View, create, stop, and remove reports are in CSV or PDF format. For more information about reports, see Reports page .
8	Reports	If you create a report on the Reports page, the report runs on all panels that are enrolled on the server. To create a report for an individual panel, see Creating a new report on the Panels page .
9	Changeable item	This position displays the item selected in the More menu.
10	More	Lists the items that you can place into the changeable item position.
11	Settings	Use the settings page to set up server configuration parameters. For more information, see Settings page .

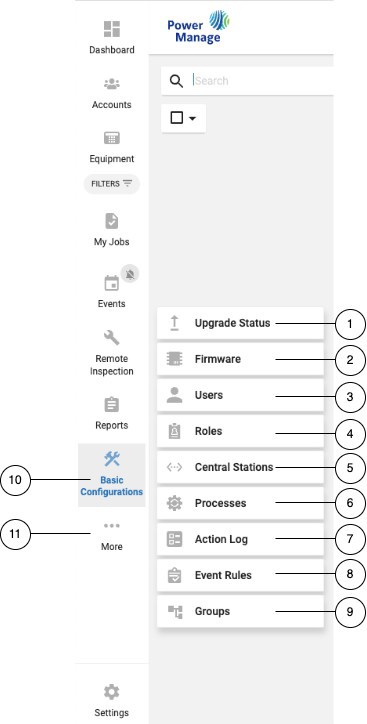

Figure 4.

Callout	Description	Function
1	Upgrade Status	Click Upgrade Status to view the upgrade status of firmware upgrades.
1	Upgrade Status	You can stop a firmware upgrade on the Processes page if it has a START status. For more information, see . To stop a process for an individual panel, see Firmware page .
2	Firmware	Mass upgrade the firmware of a group of panels or devices on the Firmware page. For more information, see Firmware tab
3	Users	Create, remove, suspend, or enable server users on the Users page. For more information, see Users page .

4	Roles	Manage the role types that you can assign to users.
5	Central Stations	PowerManage can also function as a receiver that forwards events from security panels to automation servers or central stations. Manage the information panels communicate on the Central Stations page.
6	Processes	View a list of all the processes that run on the server on the Processes page. For more information, see Processes tab .
7	Action log	View a list of all the actions made by the user that is logged on. The Actions log page logs actions in chronological order. A Success or Failure status does not mean that an action finishes with success or failure, it indicates if the action started with success or failure.
8	Event rules	Not applicable in this PowerManage version. This feature matches panel events to CS messages. Dis- able this menu by certification.
9	Groups	Manage panel groups on the Groups page. A group is a collection of panels that share the same con- figuration settings. For more information, see Groups page .
10	Changeable item	This position displays the latest item that you have selected in the More menu.
11	More	Lists the items that you can place into the Changeable item position.
