You can associate a PIR (passive infrared) camera with up to eight sensors. If any of the sensors trigger, the PIR camera records video footage for a short period of time.
In the PowerManage web application, the footage associates with the alarm event that the sensor triggers and not the
PIR camera. In the following example, the sensor in zone 1 connects to the PIR camera in zone 248. For more information, see Camera Zone Assign in PIR camera zone association and Zone in PIR camera zone association. When the sensor in zone 1 triggers an alarm, the PIR camera footage attaches to the sensor. For more information, see Camera icon in PIR camera zone association.
To associate a PIR Camera with one or more sensors, see Associating a PIR camera with a sensor.

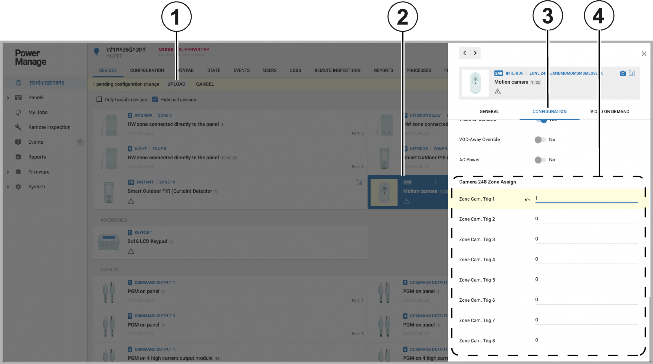

Figure 81. PIR camera zone association
Callout | Name | Description |
1 | UPLOAD button | Click UPLOAD to upload the configuration you make in Camera Zone Assign to the server. |
2 | PIR camera | Click a PIR camera device to open the device in the examination pane. |
3 | CONFIGURATION tab | Click CONFIGURATION to edit the device configuration. |
4 | Camera Zone Assign | Enter the zone numbers of the sensors that you want to trigger the PIR camera. |

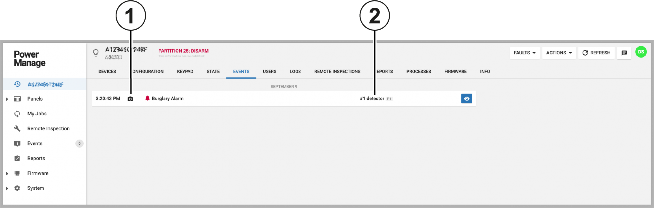

Figure 82. PIR camera zone association event
Callout | Name | Description |
1 | Camera icon | Indicates that video footage is available from an associated PIR camera. |
2 | Zone | Indicates the zone number of the sensor. |
