Basic configurations page
Navigating the Basic configurations page
Manage the panel configurations that you create on the Basic Configurations page. A basic configuration is a copy of one or more configuration parameters from an existing panel that you can use for multiple panels. To create a basic configuration from an existing panel configuration, see Creating a basic configuration from an existing panel configuration.
To push a basic configuration to one or more panels, see Pushing a basic configuration to one or more panels.
Each row on the page represents a basic configuration. A row displays the configuration name, panel model, creation date, and update time. This information is contained in the column titles: NAME, PANEL MODEL, CREATED, and UPDATED.
Filter your search of the Basic Configurations page by selecting one or more filter values from the Search list. From the Search list, select a filter value from one or more of the following keys: NAME, VENDOR, and CREATED. For more information, see Using the search filter.

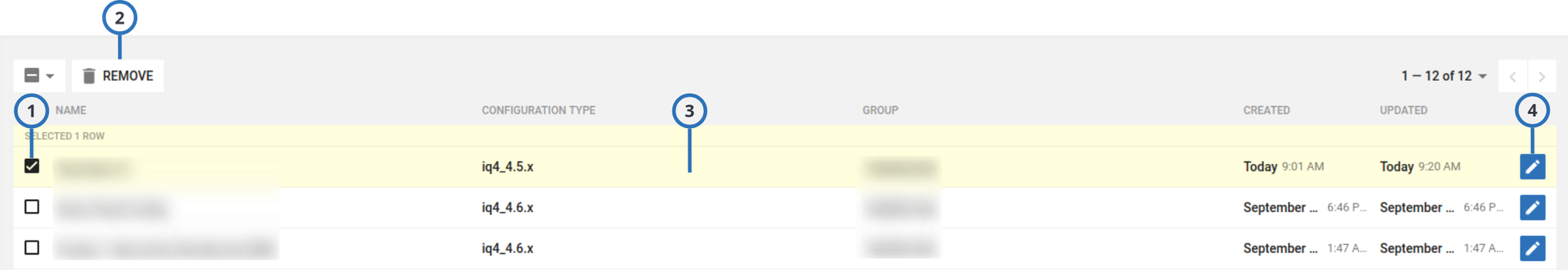

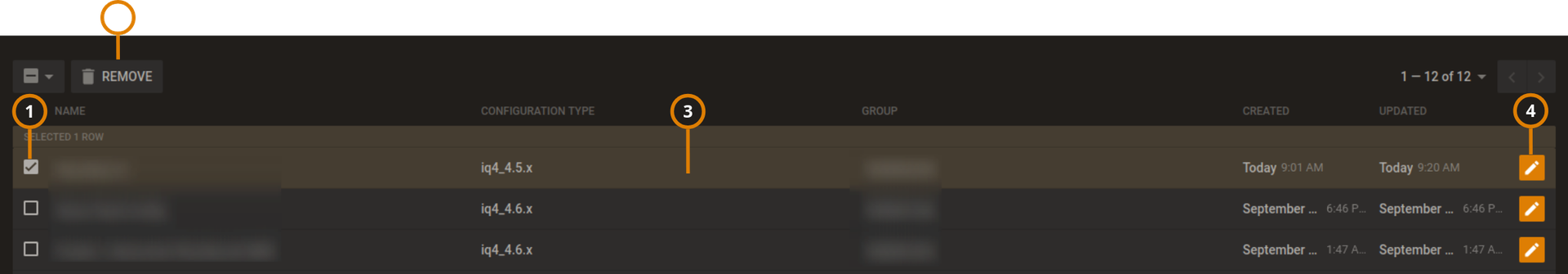

Figure. Navigating the basic configurations page
| Callout | Name | Description |
|---|---|---|
| 1 | Check box | Select the check box of one or more basic configurations to enable REMOVE. |
| 2 | REMOVE | Click to remove one or more basic configurations |
| 3 | Basic configuration | Click the basic configuration row to view a list of the panels eligible for configuration |
| 4 | Edit configuration | Click to edit the basic configuration. For more information about basic configuration parameters, see Basic configuration parameters. |
Basic configuration parameters
To configure the parameters of a basic configuration, on the Basic Configuration page, click the edit configuration button.
Figure. Navigating the basic configuration parameters
| Callout | Name | Description |
|---|---|---|
| 1 | Selected parameters | When you push a basic configuration to one or more panels on the Panels page, only the selected fields are pushed to the panel configuration. You can select or clear other parameter check boxes to include or exclude the parameters from the basic configuration. |
| 2 | Undo | Click the undo arrow to undo a selection or change. |
| 3 | Enable or disable | Click to enable or disable functions |
| 4 | Table of contents | Expand the table of contents to navigate the configuration parameters quickly. |
| 5 | Show only changed | Select the Show only changed check box to only view the parameters you edit. |
| 6 | Quick search | Enter a search term in the Quick search field to search the configuration parameters. You can search parameter names and the possible values of the parameters. |
| 7 | SAVE | Click to update the basic configuration. If you make any change, SAVE is enabled. |
Editing a basic configuration
- In the navigation pane, from the System list, select Basic Configurations.
- Click the EDIT button to edit basic configurations.
- Make the required changes. For more information, see Basic configuration parameters.
- Select the Show only changed check box to review the changes.
note
Use the Quick search bar and expand the TABLE OF CONTENTS to navigate the basic configurations.
- Click SAVE.
Removing a basic configuration
- In the navigation pane, from the System list, select Basic Configurations.
- Select the check box of the basic configuration to remove.
- Click REMOVE.
