Version: 4.18

Outputs or Automation tab

tip

Label of this tab may be Outputs or Automation depending on the Display Z-Wave and PowerG+ devices option.

For more information, see Resolve tab.

The OUTPUTS tab displays all the output devices including output, PGM, activation ports and Z-Wave.

The AUTOMATION tab displays all the panel’s Z-Wave and PowerG+ automation devices.

In this tab the devices can be:

  • Viewed
  • Controlled - Turned on or off. You can enable PowerMaster devices to turn on for specified time periods.
  • Configured – set icon and label

You can only control the devices for defined time periods after an alarm event. To define this time period:

  1. Click Settings.
  2. Click RESOLVE.
  3. Click Automation Activation settings.
note

In DSC panels the output needs to be configured as command output 1-4 ([*]→[009]→121-124) and the created devices are as follows: X00Y, when X is the number of output 1-4 and Y is the associated partition number of the output device. For example, if two physical output devices are configured as output 1 and assigned to three partitions 1, 2 and 3, then 3 output devices are created called 1001, 1002, and 1003. Each such output device controls the two physical output devices.

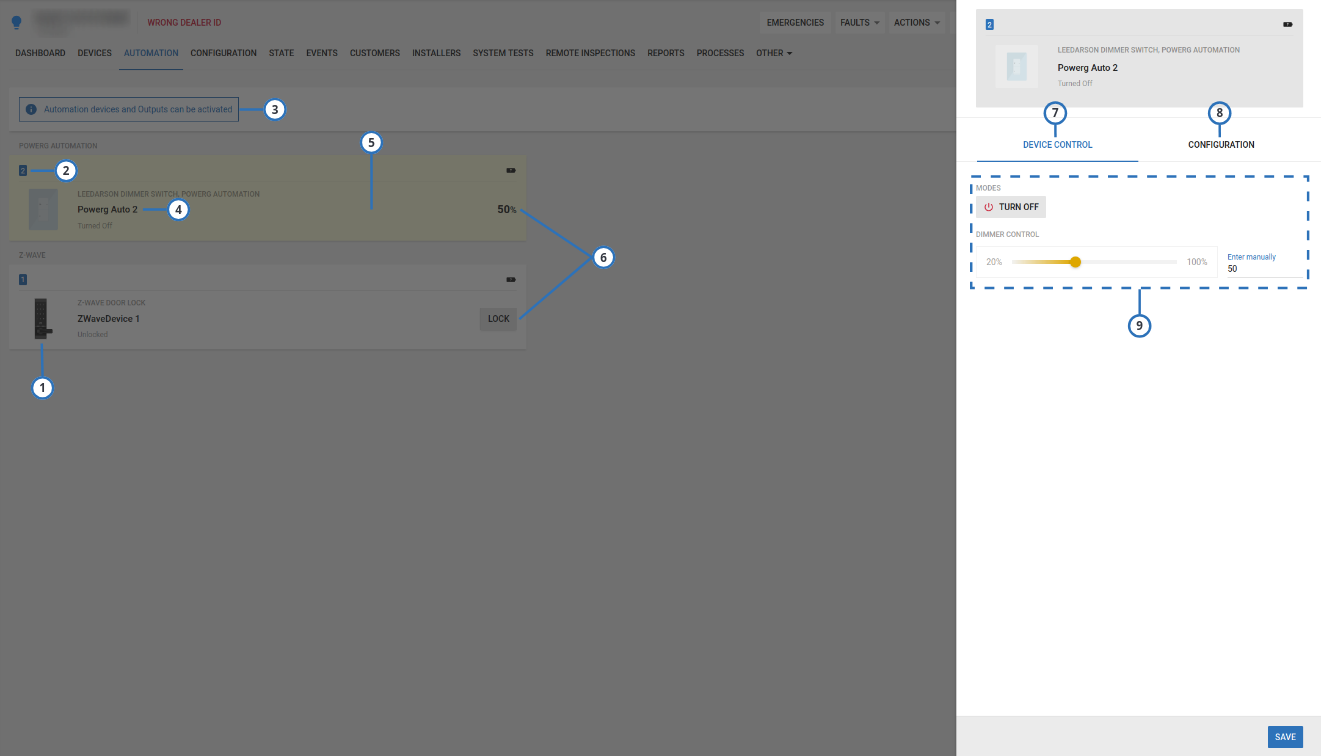

Figure. Outputs or Automation tab

Outputs or Automation tab (light) Outputs or Automation tab (dark)
CalloutNameDescription
1Output/Automation IconDescribes the Output/Automation functionality. It can be set in CONFIGURATION (callout 8)
2Output/Automation number

Unique Output/Automation number.

note

In DSC panels 1001 means first output (121) partition 1.

3Control status

Most of the time it says in red Automation devices and Outputs can be only activated during 5 minutes since alarm received.
After an alarm there is a comment saying outputs can be activated. For more information about timeout configuration see Resolve tab

4Output/Automation labelOutput/Automation label which can be set in CONFIGURATION.
5Output/Automation rowEach PowerManage Output/Automation device gets one row.
6Control buttonAfter alarm event the button can control the Output/Automation state.
7DEVICE CONTROLWhen selecting an output row a dialog appears with DEVICE CONTROL tab with the ability to turn on/off the Output/Automation device after an alarm.
8CONFIGURATION

When selecting an Output/Automation row a dialog appears with CONFIGURATION tab with the ability to define icon and label.

note

You can configure the icon only for output (PGM).

9Control menuIn the DEVICE CONTROL tab, after an alarm event, the control menu can manage the Output/Automation state.
